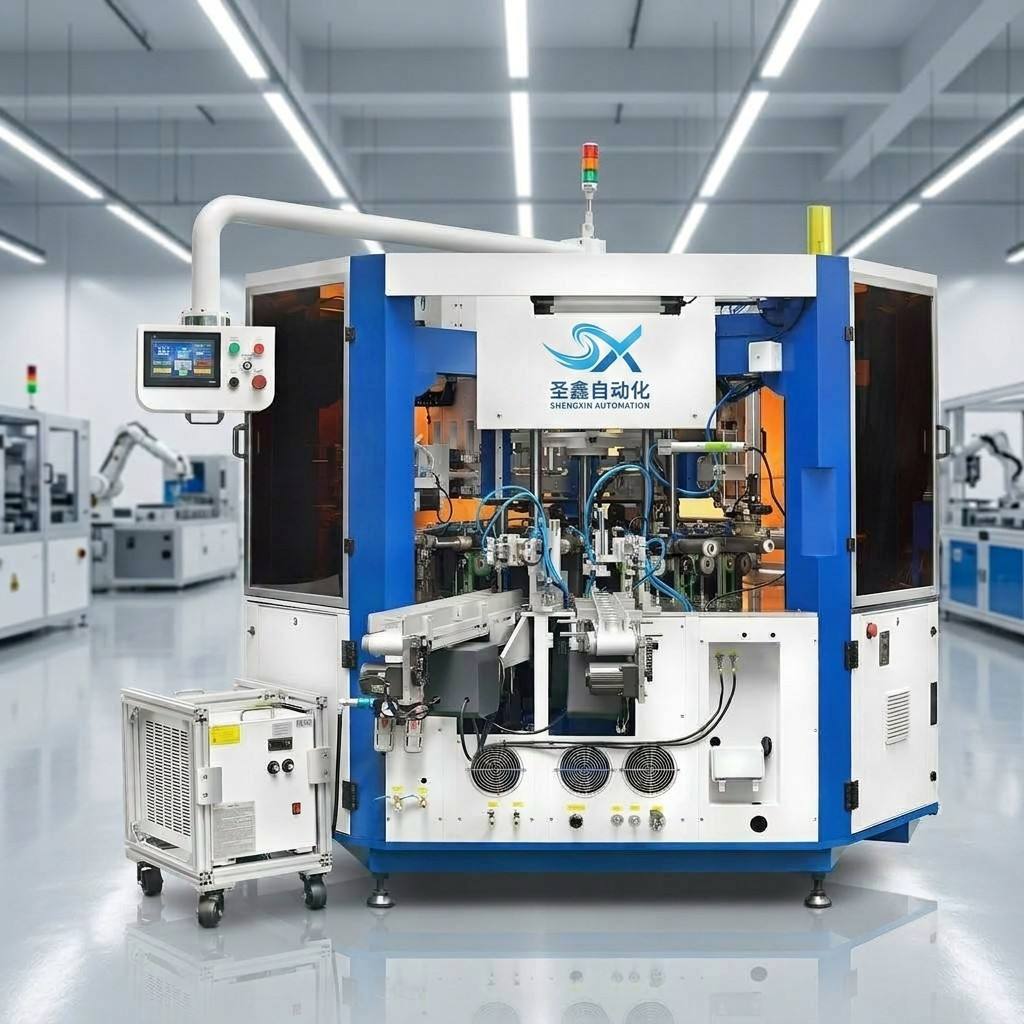

SXAE-320 Fully Automatic CNC 3 Color Multifunctional Screen Printing Production Line

  • Product Item:SXAE-320
  • Printing speed: 2500-3600 Pieces/hour (adjustable as per article shape, size and print image)
  • Printing size: Φ20-90mm, Height 25-220mm
  • Compressed air pressure: 6-8 Bar
  • Machine dimension: L 2200*W 3000*H 2400mm
  • Power: AC 380V, 3-Phase, 50Hz/60Hz, 17Kw(electric UV), 5Kw(LED UV)
  • Category:Fully Automatic CNC Controlled 3 Color Multifunctional Screen Printing Machine
  • Inquiry

    Description

    The multifunctional rotary multicolor screen printing machine is common used for cylindrical products like bottles, jars , plastic and glass tube, cap, rubber tube, plywood, lipstick etc.

    It is easy operation, accurate register, highly automation, fast in printing and low maintenance.

    Features:

    1. Equipped with functions:

    Vertical or horizontal loading and unloading,Automatic rotation,

    Antistatic dust device,

    Flame pre-treatment,

    Automatic pre- and main register,

    No article no print,

    Optional UV, LED UV curing system or hot air drying, etc.

    2. Optional different processing with hot stamping, labeling, heat transfer, and varnish etc.

    3. the brand of main parts are Taiwan, France, Germany, USA and Japan to ensure the machine quality. Safety operation with CE

    Parameters:

    印刷速度

    Printing speed

    2500-3600 Pieces/hour

    (depending on article shape, size and print image, infinitely adjustable)

    印刷尺寸Printing size

    直径Φ20-90mm, 高Height 25-220mm

    压缩空气压力

    Compressed air pressure

    6-8 Bar

    机身尺寸Machine dimension

    L 2200*W 3000*H 2400mm

    功率Power

    AC 380V, 3-Phase, 50Hz/60Hz, 17Kw(conventional UV), 5Kw(LED UV)
