Turntable 6+6 Color Screen Printing+3 Hot Stamping

Product Item：SXAE-518

Printing speed: 20 to 25PCS/min

Power of the whole machine: 380V 50hz 110kw

Air source: 5--7 bar

Category：Customized Machine

Description

High precision turntable 6+6 color screen printing machine + 3 color hot stamping machine, combined production line.

The production speed is 25 sets/min, which is suitable for customized printing of high-end container packaging.

This machine adopts servo turntable, innovation servo motor, servo lift printing head, servo left and right printing head and screen frame, NSK bearing. The performance of the machine is more stable and the operation is easy.

In order to ensure the stable production, this production line is equipped with a 30-meter I-pad operating system and a remote technical cooperation system. If domestic and foreign customers have any technical problems that cannot be solved, our engineers can solve them for you online in time.

Technical features:
Manual feeding; manipulator automatic loading; surface electrostatic dust removal; automatic rotating 6 color screen printing; LED UV curing; mechanical hands automatically grab and place the material at the angle of placement; transition belt conveying; manipulator automatically grabs and loads; surface electrostatic dust removal; automatically rotates and turns 6 color screen Printing; LED UV curing; manipulator automatically grabs and places the material at an angle; transition belt conveyor; Robotic arm automatically grabs and loads; electrostatic dust removal on the surface; automatically rotates and flips 3 color bronzing/hot stamping; the robot automatically grabs and place angles for blanking; finished product feeding system; manually collected into box.
---------------------------------------------
The main technical parameters;

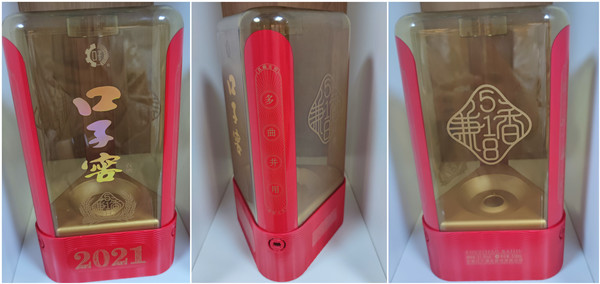

Applicable products: Three R-angle faces and three planes, pad print the QR code.

Printing speed: 20 to 25PCS/min (1200 to 1500PCS/hour).
Power of the whole machine: 380V 50hz 110kw (three-machine connection power).
Air source: 5--7 bar
---------------------------------------------
This machine is a high-end precise color printing customized model, the highest quality solutions. CE standards, Patented product, fully servo drive machine. One year warranty for main parts. Simple operation, cost-effective.
