Home Equipments Customized machine SXAE-516 Fully Automatic 5 colors Servo CNC Screen Printing Machine For Containers SXAE-516 Fully Automatic 5 color Servo

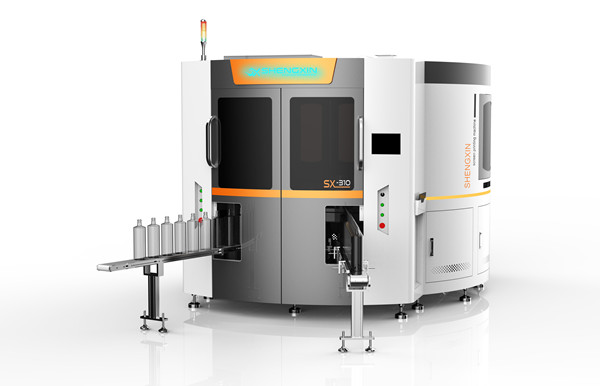

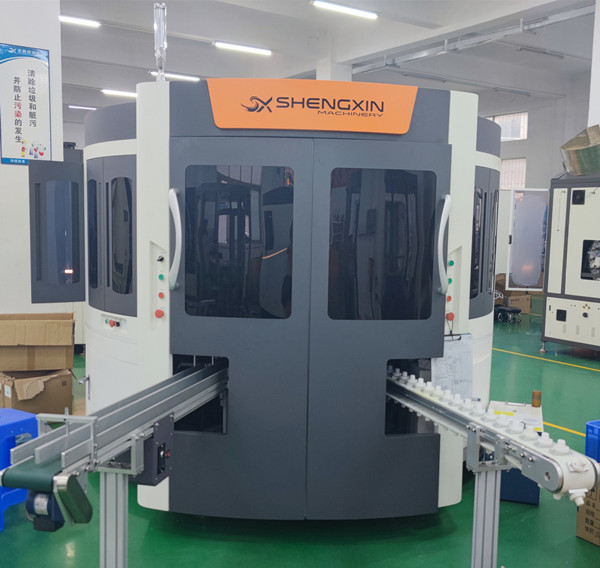

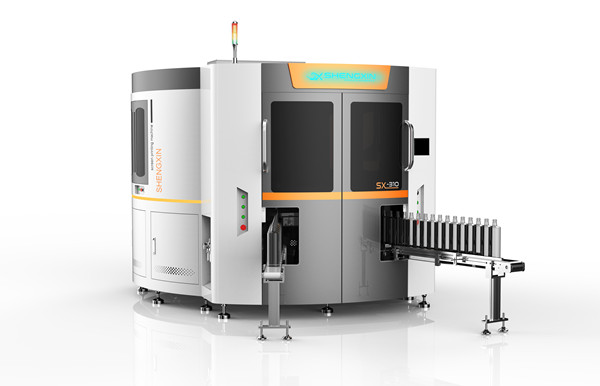

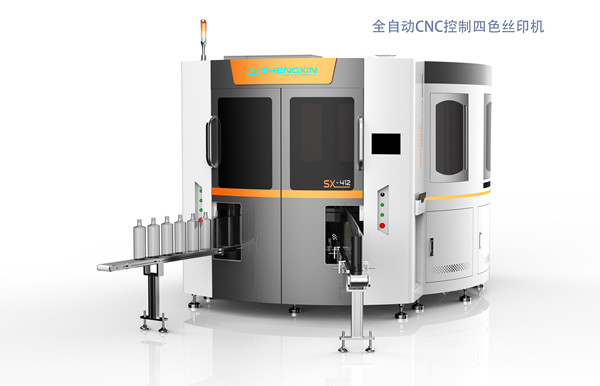

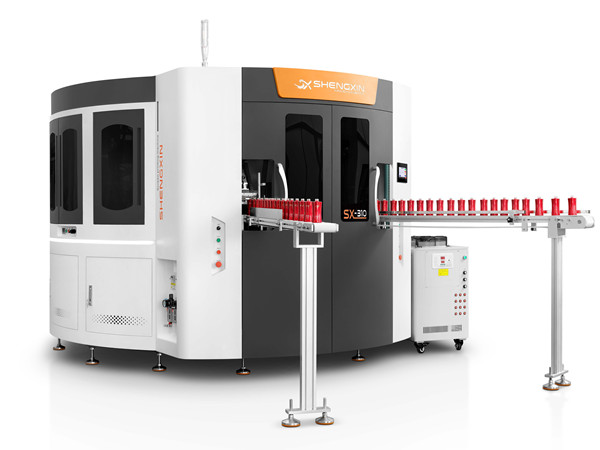

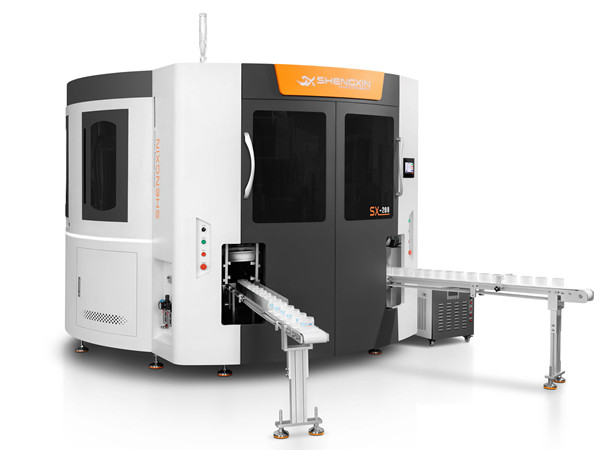

SXAE-516 Fully Automatic 5 color Servo CNC Screen Printing Machine

  • Product Item:SXAE-516
  • Printing speed: 2400 Pieces/hour
  • Printing area: Maximum diameter Φ105mm, Height 305mm
  • Compressed air pressure: 5-7 Bar
  • Power: AC 380V, 3-Phase, 50Hz, 38Kw
  • Category:SXAE-516 Fully Automatic 5 colors Servo CNC Screen Printing Machine For Containers
  • Inquiry

    Description

    Application:

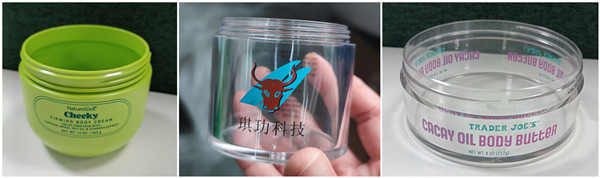

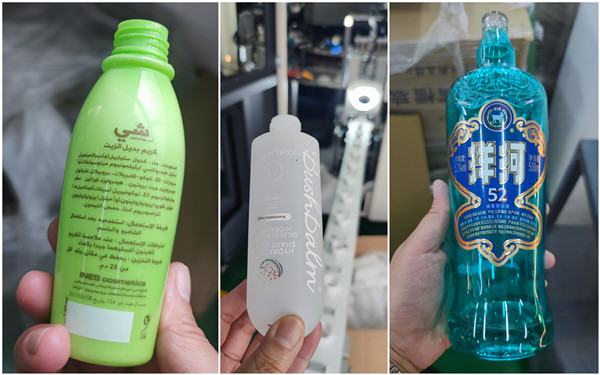

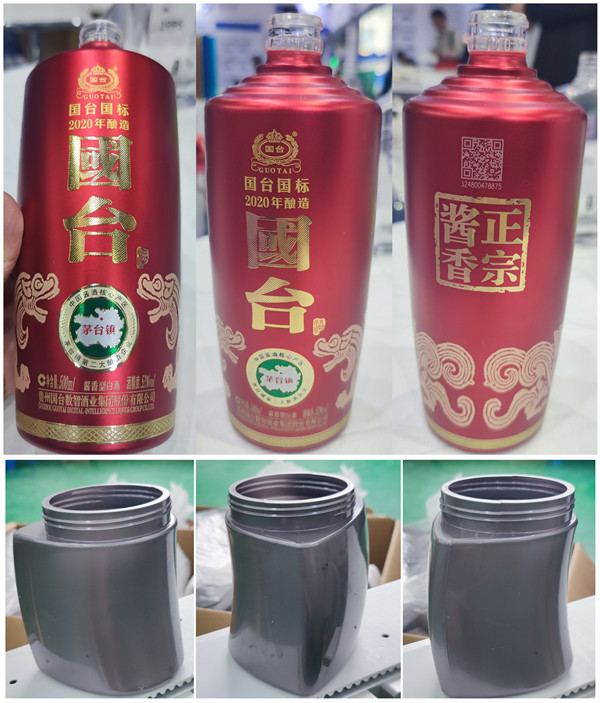

    print different pattern on glass, plastic, stainless steel, stainless steel with coating etc substrate cylindrical, oval objects etc.

    Features:

    printing 3 color pattern container, it only needs to turn on the print heads for printing in any of the 3 positions. After each color printing, immediately UV LED curing will dry the color, and a color printing process followed by a UV LED curing is sufficient. If certain printing head is not needed, it can also turn off the following UV LED curing process. Such operation will not affect whole machine operation, and it will not affect printing quality.

    To print container of the same shape and different patterns, it needs to change the plates. Printing different shapes, different patterns, it needs to replace the plates and tooling fixture. replacement for all plates, tooling fixtures is less than 1 hour.

    If the customer needs the machine designed ideal for a high rate of changeovers suits pre-registered plates, we can modify the machine to be able to change the plates (same size), different graphic) in 10 mins.

    customer can send representatives to our factory to learn how to install and use the machine, or our engineers go to the customer's factory for guidance.

    well maintained, machine has a life of more than 10 years. main components are international famous brands, DD motor, Omron PLC, touch screen, Omron servo motor, SMC Electromagnetic Valve and cylinder etc. our machine operation concept is guaranteed by patent technology. The warranty period is one year (cover all major components, accessories of the machine except vulnerable parts such as mechanical hands); lifetime technical service.

    Parameters:

    印刷速度

    Printing speed

    2400 Pieces/hour

    (depending on article shape, size and print image, infinitely adjustable)

    印刷面积Printing area

    Maximum diameter Φ105mm, Height 305mm

    压缩空气压力

    Compressed air pressure:

    5-7 Bar

    机身尺寸Machine dimension

    Please see drawing for reference

    功率Power:

    AC 380V, 3-Phase, 50Hz, 38Kw
